2008 Dodge Avenger
Model # S23221
Use straight lower brake arm.
Use CUT THROTTLE BLOCK.

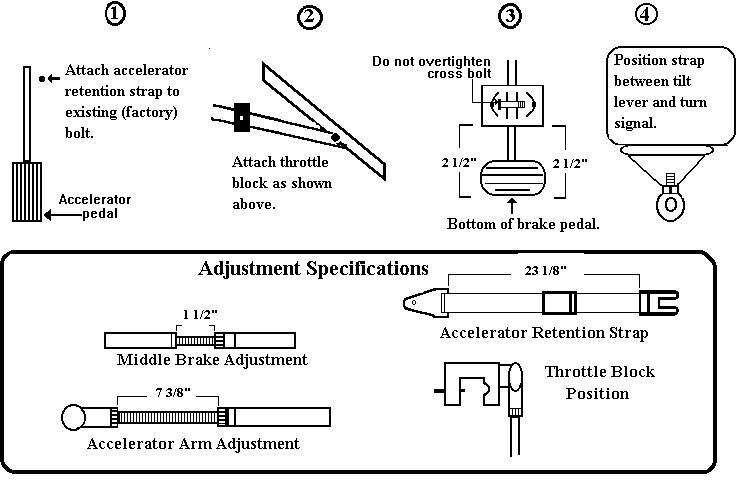

Use the illustrations below for reference to install the AUTOMOBILITY 901 in eight steps

1. Remove the lower retention strap from the accelerator arm and install as shown in illustration (1).

2.Attach the throttle block on the accelerator arm as shown in illustration (2).

3.Attach the lower brake assembly above the brake pedal at the height shown in illustration (3).

4.Lift the brake arm and attach the column mount. **pull tower strap as tight as and low as possible towards the dash before locking cam lock.

5.Attach the brake arm and accelerator arm to the control handle.

6.Attach the lower retention strap to the upper short retention strap on the accelerator arm.

7.Attach the lower spring retention strap and adjust. Make sure cross bolt is not over tightened and binding.

8. Safety check. Be sure to check that bolts and nuts are properly tightened, you should have full throttle and full brake. The system must go through the brake and throttle motions smoothly, there should be no binding or hesitation.
